Hatsan AT-P1, PCP Air Pistol

AT-P1, pCP multi-shot wind gun from the company Hatsan Arms equipped with fiber optic targeting instruments TruGlo. Available in calibers .177 (4.5 mm), .22 (5.5 mm), .25 (6.35 mm). One of the most powerful air pistols on the market!

Barrel - precision threaded 10.4" (265 mm) long from the company Hatsan Arms. Tapered (chocked) barrel at the exit ensures precise guidance of the shot, improves accuracy, especially when shooting at long distances. The barrel is terminated with an external thread ½" UNF allowing the attachment of a sound attenuator, toss compensator or separator. The quality of workmanship affects the focus, is one of the most important elements of any weapon or air rifle.

Skeleton - in black, made of damage-resistant durable polymer. Soft rubber inserts on the handle grip and ergonomic finger cutouts for a secure grip.

Power supply - the pistol is equipped with a replaceable compressed air tank under the barrel with a capacity of 50 cc. When fully charged, it allows you to cast 25 effective shots depending on the caliber (data for version FAC*). The built-in pressure gauge allows you to constantly monitor the pressure in the tank, and thus the degree of its charge. A rotating ring protects the charging inlet from damage. When the compressed air is emptied, the empty cartridge can be replaced with a new full one (optional). This provides a solution for shooters not intending to take the pCP pumps or cylinders range. 100 bar minimum working pressure in the cartridge recommended by the manufacturer.

Important! The air injected (rolled) into the wind gun should be dried, which prevents corrosion of the cartridge. Using the original pump HATSAN HAND PUMP equipped with particle filter (which retains moisture from the air drawn in from outside) and an additional dehumidifier cartridge (which retains residual moisture) prolongs the life (tightness) of the cartridges.

Mounting rail - double 11 mm / 22 mm, allows mounting of any optical sight. Equipped with a recoil-absorbing stopper after a shot is fired to prevent the sight from moving along the rail and calibrating it. Additional three rails picatinny placed on the grip of the rifle.

Magazine - interchangeable, rotatable. Depending on the caliber, aluminum ones are offered in capacity 10 sharps (cal. 4.5 mm and 5.5 mm) or steel 9 cartridge (cal. 6.35 mm). Side-lever reloading mechanism type side-lever action using a two-bar lever located on the left side of the gun. It causes the "cock" to be pulled, the magazine to be rotated and new shot to be inserted into the barrel.

Oxide - lock chamber oxidized on bLACK, other elements covered with oxidation blue finish.

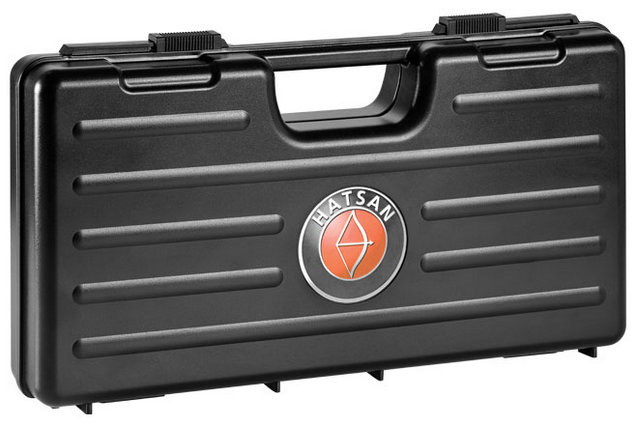

Accessory equipment - socket / adapter (air cylinder discharging cap) for draining the pressure from the cartridge. Tip Quick-Fill nozzle, allowing the cartridge to be quickly filled with air using the hatsan Hand Pump, technical cylinder or dive (300 bar). The whole thing is packed in a rigid polymer case.

Windmill ATP1 is equipped with a number of solutions to improve comfort and safety of use:

• Quattro Trigger, 2-stepped fully adjustable trigger mechanism. Length adjustment first way (sterile) and the other way trigger tongue (Trigger Load). Adjustment hardness (sensitivity / resistance) trigger tongue (Trigger Pull). Allows the trigger characteristics to be individualized to the user's requirements for best accuracy.

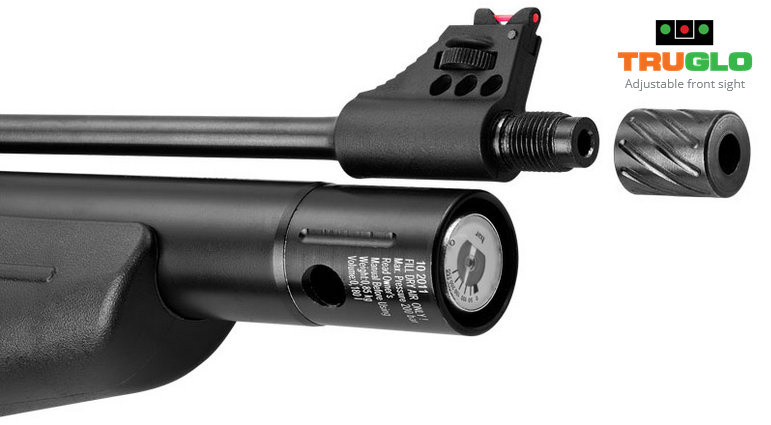

• TruGlo - fiber-optic targeting instruments with contrasting fiberglass colors allow precise shooting even in low light conditions. Red adjustable bow tie, pinpoint nose piece green vertically and horizontally adjustable.
• Anti-Double-Pellet Feed, a mechanism to prevent more than one shotgun shell from being loaded into the barrel.
• Anti-Knock System®, patented system to prevent loss of compressed air in the event of mechanical impact with a windbreaker.
• Manual-automatic fuse, protecting against uncontrolled firing. Launched automatically during reloading. Before firing, depress the fuse with your thumb.

For each wind gun not exceeding 17J, the manufacturer includes a unique Energy Limit Certificate 17 J. The certificate is a document stating the compliance of the product features, and thus the legality of the windcheater with Polish regulations. Legally imported windcheaters for the Polish market have an engraved website address www.sharg.en exclusive distributor of Sharg.

General technical parameters:
Model: AT-P1
Type: PCP air rifle
Initial energy: up to 17 J
Overall length: 415.0 mm / 16.3"
Barrel length: 265.0 mm / 10.4"
Weight: 2.05 kg / 4.5 lbs
Cartridge capacity: 50cc
Manufacturer: Hatsan Arms, Turkey

Detailed technical data for FAC (*): 4.5 mm caliber / .177
Maximum discharge speed (**): 264 m/s / 870 fps
Energy: 20 J / 14.5 ft. lbs
Magazine capacity: 10 pcs.
Number of shots: 55
Number of effective shots: 25

Detailed technical data for FAC (*): 5.5 mm caliber / .22
Maximum discharge speed (**): 236 m/s / 780 fps
Energy: 27 J / 19.8 ft. lbs
Magazine capacity: 10 pcs.
Number of shots: 55
Number of effective shots: 25

Detailed technical data for FAC (*): 6.35 mm caliber / .25
Maximum discharge speed (**): 255 m/s / 710 fps
Energy: 30 J / 22.0 ft. lbs
Magazine capacity: 9 pcs.
Number of shots: 55
Number of effective shots: 25

* The above maximum values, given by the manufacturer, apply to exclusively windcheaters no energy limit.
** The discharge velocity can vary by as much as 20% depending on the weight and shape of the sharps, temperature and other environmental factors.

Development of the company Sharg®
