Hatsan Barrage, PCP Semi Auto Air Rifle
- BARRAGE, a semi-automatic PCP air rifle from Hatsan with SemiAutoAction system that ensures automatic reloading every time the trigger tongue is pressed (FAC version only*) and quick firing without the need to change the aiming line.

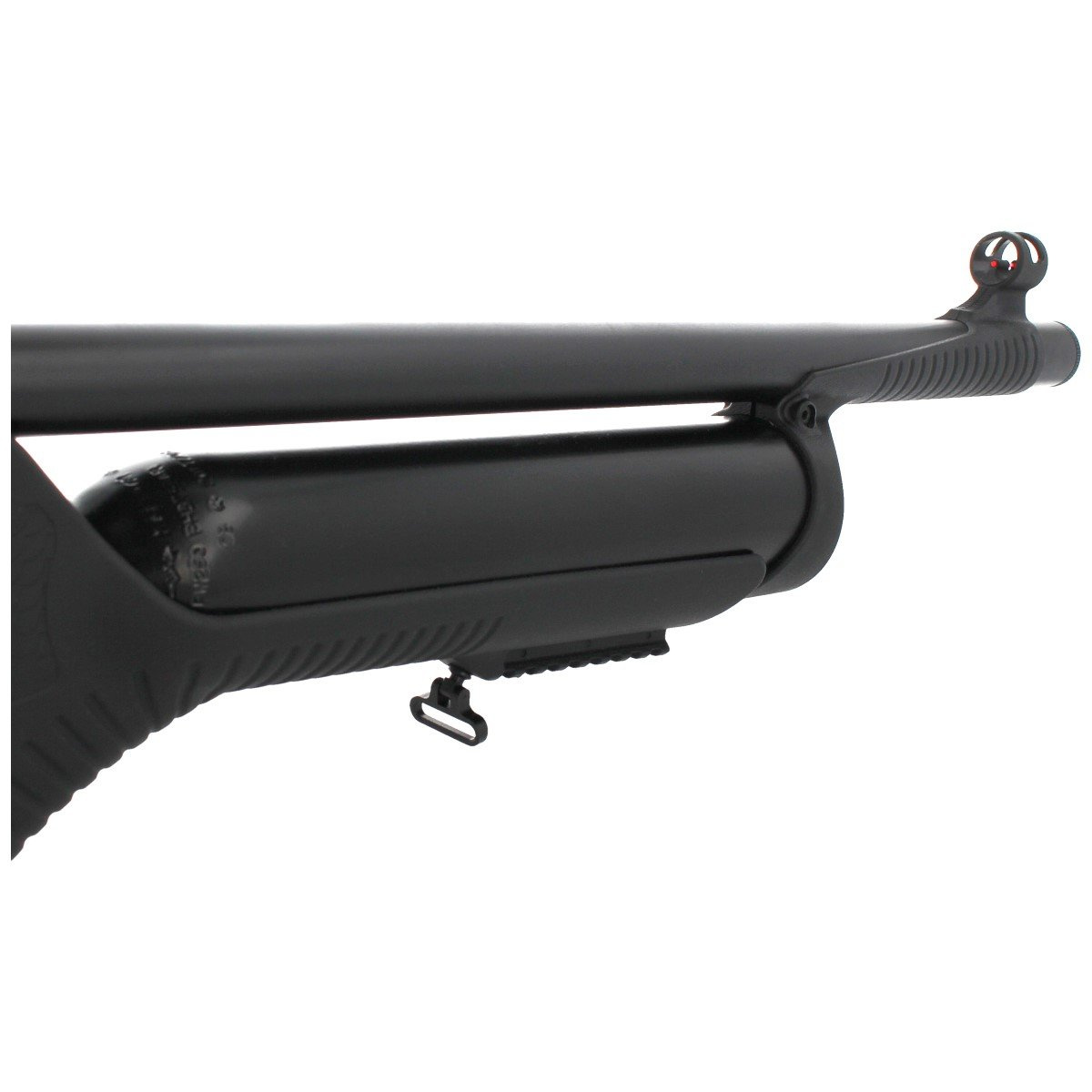

£701.86Power supply - fixed compressed air reservoir with a capacity of 500 cc (air tube bottle). A fully charged cartridge allows you to shoot from 100 to 120 shots depending on the caliber of the wind gun (data for version FAC*). The pressure gauge allows you to constantly monitor the pressure in the tank, and thus the degree of its charge. 130 bar minimum working pressure in the cartridge essential for proper operation windcheaters with system Semi Auto Action. Due to its large capacity, loading the cartridge only from the technical cylinder or dive (300 bar).
Barrel - fully covered with a metal shield. Precision threaded with length 19.7" (500 mm), Hatsan Arms. The constriction at the exit of the barrel called the forehead improves focus. The workmanship of the barrel is one of the most important parts of any weapon/wind gun. Affects the accuracy of the rifle, especially when shooting at long distances.

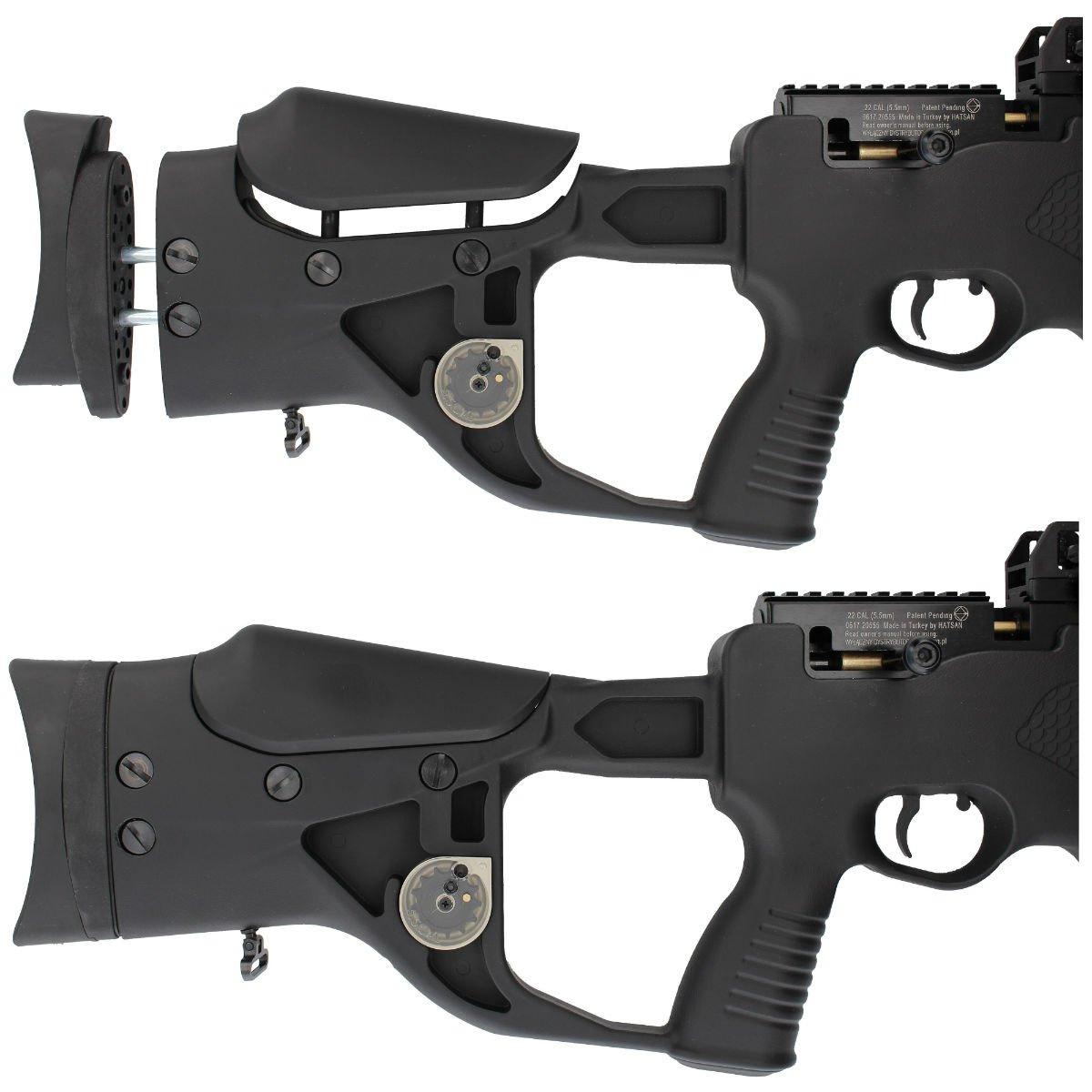

Settlement - with thumb hole TH (ThumbH(ole) made of heavy-duty polymer in black. Two slots for spare magazines. Flask suitable for right and left-handed people. Adjustable with screws height of the tank and length of the rubber foot.
Mounting rail - double 11 mm / 22 mm, allows mounting of any optical sight. Rail in accordance with MIL-STD 1913 standard (called picatinny or Weaver). Additional picatinny rail located on the underside of the grip of the axle.
Magazines - multi-bay Clip Magazine-A with a capacity of 10 to 14 shotgun shells depending on the caliber of the wind gun. Included three magazines.
Oxide - made of anodized aluminum lock chamber oxidized black black. Other elements covered with oxidation blue finish.

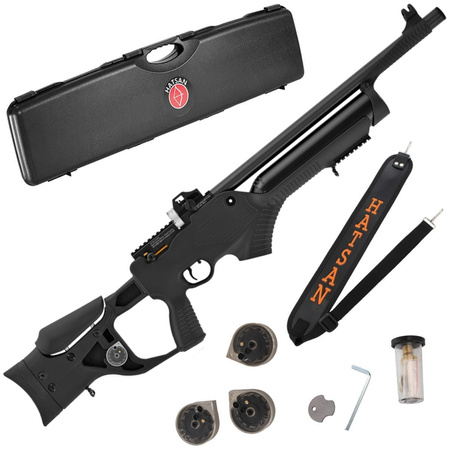

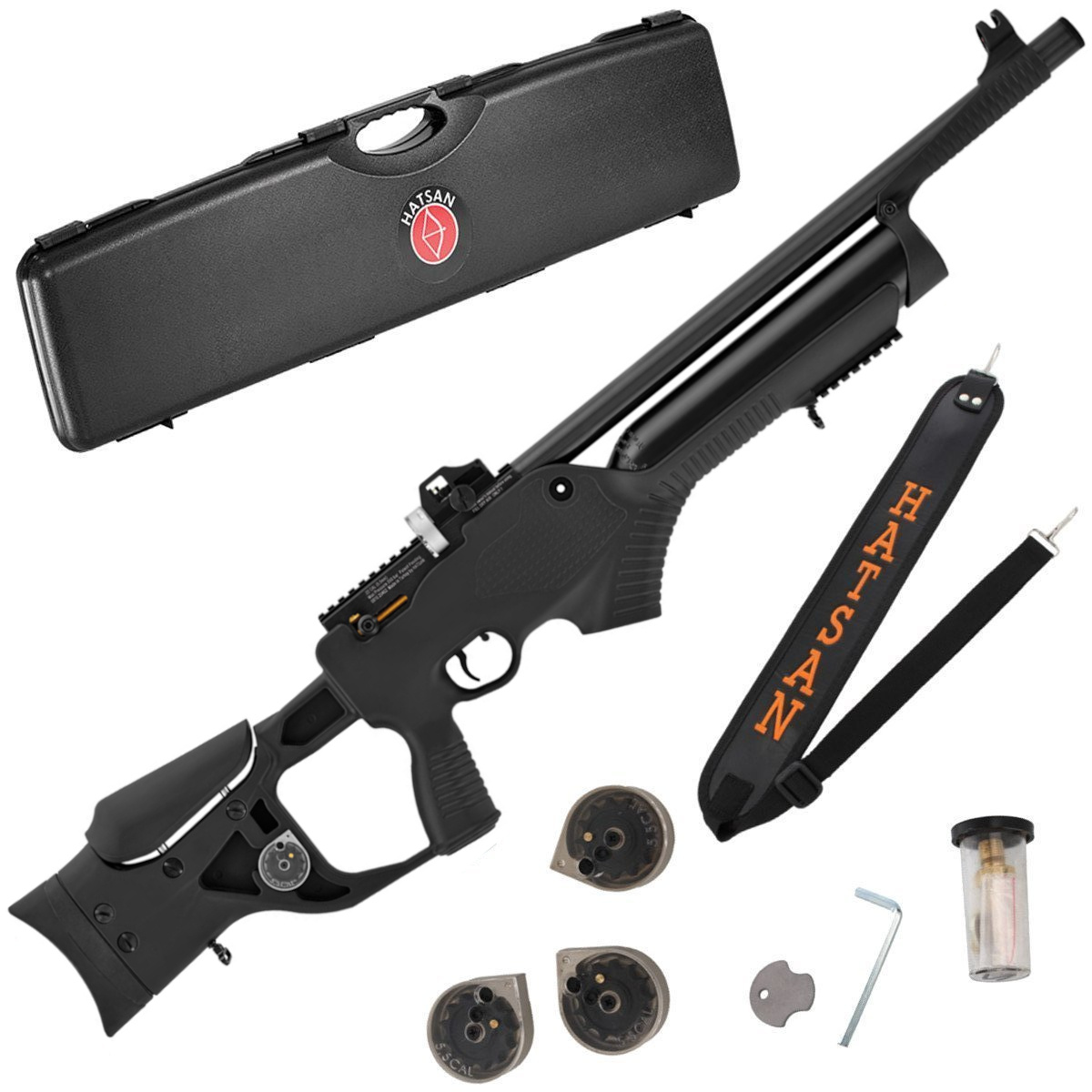

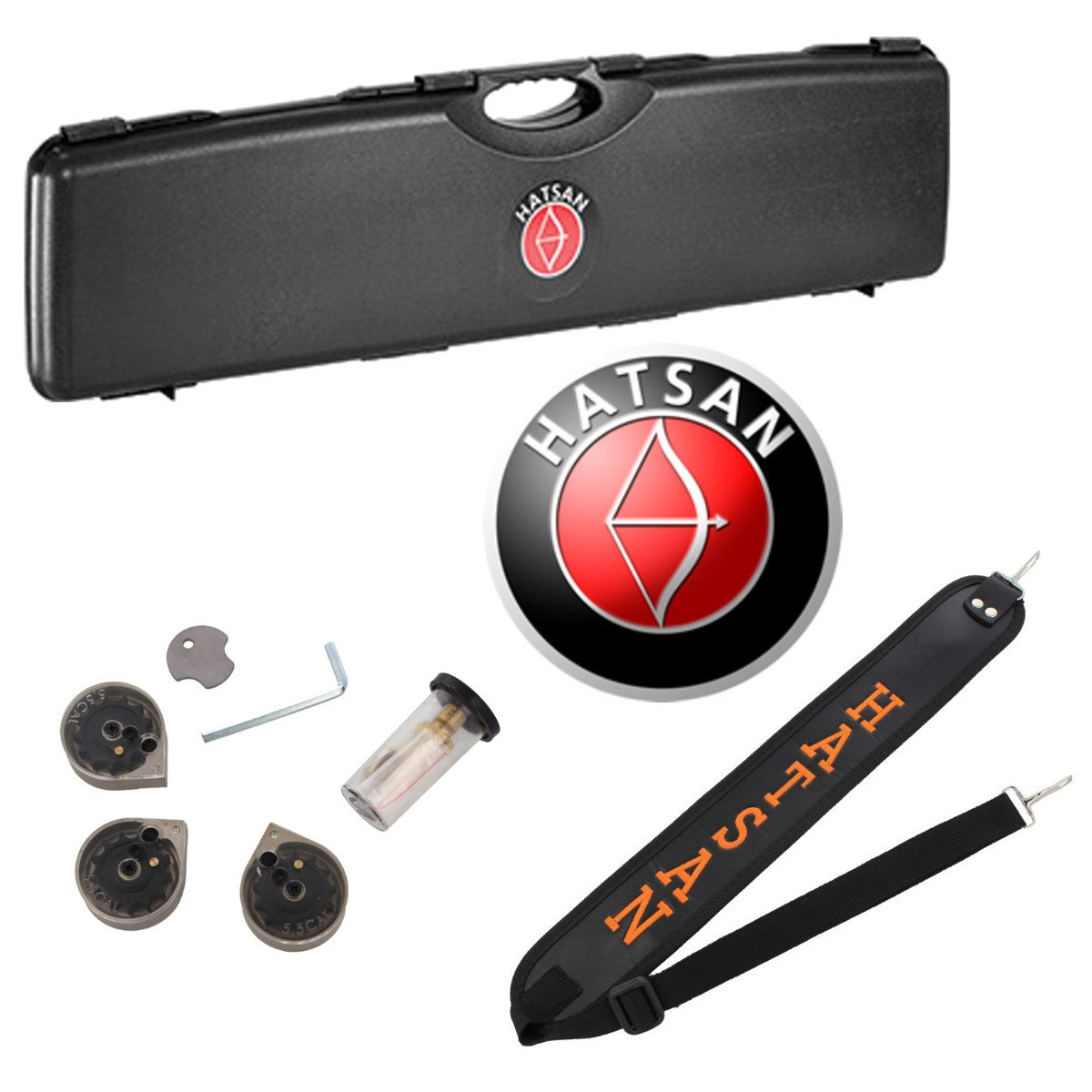

Accessory equipment - two metal rotating spinner for attaching a gun belt or tactical suspension. Tip Quick-Fill to quickly fill a cartridge with air using a 300 bar cylinder. Entire packaged in a rigid polymer caseę.
Windmill BARRAGE is equipped with a number of unique solutions to improve comfort and safety of use:
- System EasyAdjust height-adjustable tank top. Flask equipped with an integrated button that adjusts the height of the tank.
- Anti-Knock System® - patented system to prevent loss of compressed air in the event of a mechanical impact with a windbreaker.

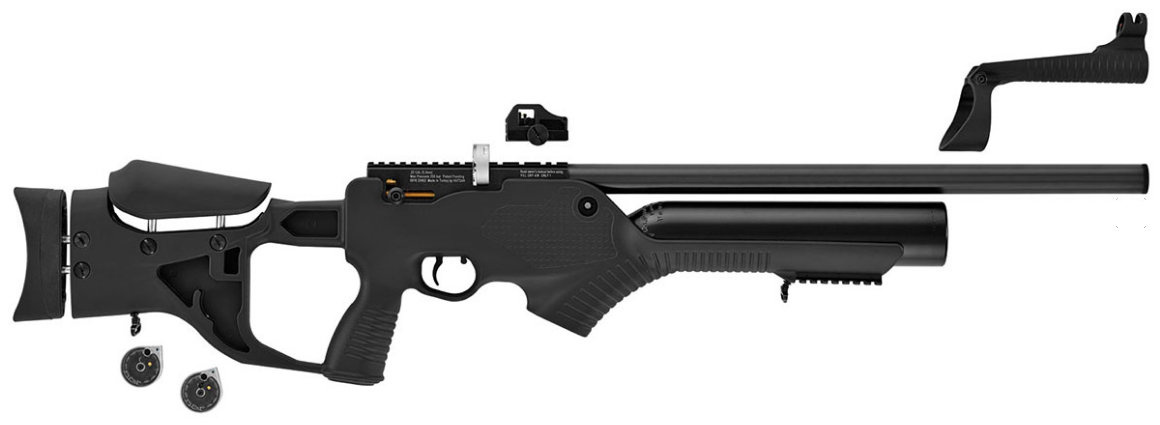

- TruGlo - removable. Open fiber-optic targeting instruments with contrasting fiberglass colors allow precise shooting even in low light conditions. Red bow tie, green vertically and horizontally adjustable pinniped.
- Manual fuse, prevents uncontrolled shots from being fired.
General technical parameters:
Model: Barrage
Type: PCP air rifle
Initial energy: up to 17 J
Overall length: 1040.0 mm / 40.9"
Barrel length: 500.0 mm / 19.7"
Weight: 4.62 kg / 10.1 lbs
Cartridge capacity: 500cc
Manufacturer: Hatsan Arms, Turkey
Detailed technical data for FAC (*): 4.5 mm caliber / .177
Maximum discharge speed (**): 320 m/s / 1050 fps
Energy: 27 J / 20 ft. lbs
Magazine capacity: 14 pcs.
Number of shots: 100
Number of effective shots: 100
Detailed technical data for FAC (*): 5.5 mm caliber / .22
Maximum discharge speed (**): 295 m/s / 970 fps
Energy: 42 J / 31 ft. lbs
Magazine capacity: 12 pcs.
Number of shots: 120
Number of effective shots: 120
Detailed technical data for FAC (*): 6.35 mm caliber / .25
Maximum discharge speed (**): 270 m/s / 900 fps
Energy: 48.5 J / 36 ft. lbs
Magazine capacity: 10 pcs.
Number of shots: 120
Number of effective shots: 120
* The above maximum values, given by the manufacturer, apply to only airguns no energy limit.
** The discharge speed can vary by up to 20% depending on the weight and shape of the sharps, temperature and other environmental factors.
