- A341 / SC, concave ½ fluted (lighter), black oxidized 6-chamber Pietta percussion drum with fireplaces. For black powder revolvers 1851 Colt Reb Nord Navy, 1860 Colt Army, 1861 Colt Navy and 1862 Colt Pocket Police Snubnose Thunderer.

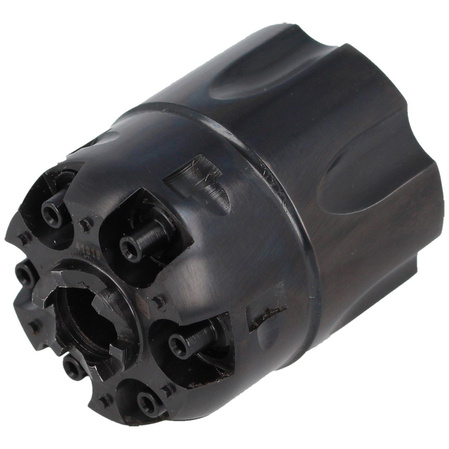

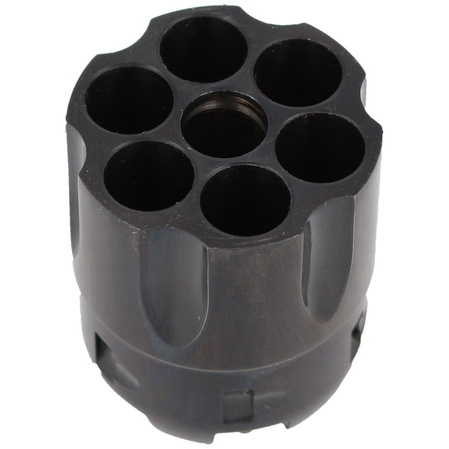

A341 / SC, a steel, 6-chamber percussion drum (#15 or #12 in the diagrams) from Pietta with a set of fireplaces (#16 or #13). Concave (½ fluted), channeled to the middle, lighter than a full drum. Designed for black powder revolvers 1851 Colt Reb Nord Navy, 1860 Colt Army, 1861 Colt Navy and 1862 Colt Pocket Police Snubnose Thunderer.

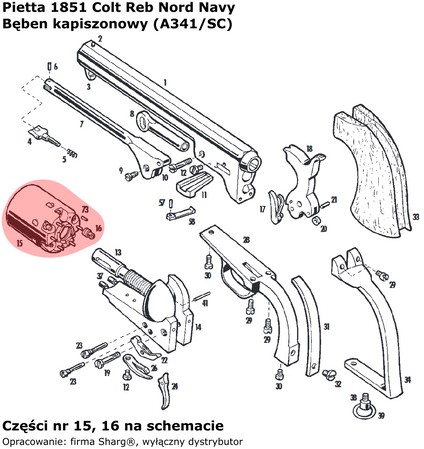

Scheme of the revolver: 1851 Colt Reb Nord Navy
Product number: A341 / SC
Part name: .44 Fluted Cylinder Finished + 16
Number on the diagram: 15 + 16
Scheme of revolver: 1860 Colt Army / 1861 Colt Navy
Product number: A341 / SC
Part name: .44 Fluted Cylinder Finished + 13
Number on the diagram: 12 + 13
Schematic of the revolver: 1862 Colt Police Snubnose
Product number: A341 / SC
Part name: .44 Fluted Cylinder Finished, Snubnose
Diagram number: None
Technical Specification:
Product number: A341 / SC
Caliber: .44
Drum Type: Percussion, Concave (Fluted)
Finish: Black
Type of finish: Smooth
Drum: 6-chamber
Material: Burnished steel
Dimensions: 50 mm x 40 mm
Weight: 240.0 g / 8.47 oz
Producer: Pietta, Italy
Created by: Sharg® Company - including importer
